RO System Machine Price,2t Reverse Osmosis Machine,Water Treatment Machine,Water Purifier,Home Water Treatment,Seawater Desalination,Ground Water Purifier,Filte
2000lph Borehole RO Drinking Water Purifier Treatment Plant Industrial RO Plants: We offer a wide range of industrial re
Send your inquiryDESCRIPTION
Basic Info.
Model NO. | CK-RO-2000L/H |
Productivity | 2t/H-5t/H |
Color | Silver |
Usage | Environmental Protection, Chemical Industry |
Place of Origin | Guangdong China (Mainland) |
Type | Reverse Osmosis |
Motive Force | Electric Power |
Transport Package | Wooden Case or Carton Box |
Specification | CE |
Trademark | CHKE |
Origin | Guangdong, China (Mainland) |
HS Code | 8421219990 |
Production Capacity | 1000sets Per Year |
Product Description
2000lph Borehole RO Drinking Water PurifierTreatment Plant
Industrial RO Plants:
We offer a wide range of industrial reverse osmosis Plants, according to We need for tap water, brackish water & sea water application. The production range starts from 100 LPH (Liter per hour) to 100 M3 per hour for 400 IBS to 45,000 TDS and reduce TDS @ 90-99% .
All our industrial reverse osmosis Plants are carefully customized and configured to suit the individual requirement of the output water, which varies from normal drinking application to the specific usage, such as food Processing, pharmaceuticals and boiler feeding requirement. This is done through an in depth and complete chemical analysis of the feed water available to us in specific location
Reverse Osmosis has gained wide acceptance and popularity due to its simple operation and the ability to withstand variations in feed water quality
RO System Includes:
Feed Water Pump
Pretreatment Filter (according to your water anlysis report choose the Multi-media filter,Activated carbon filter,soften system )
PH Dosing system
Cartridge filter
CIP Clean System
High pressue pump
RO Membrane
Main Technical Parameters:
Model | Flow rate (L/h) | Power(KW) | Water use efficiency | RO membrane | Dimension L X W X H(mm) |
RO-500L | 500 | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
RO-750L | 750 | 2.5 | ≥ 50% | 4040 | 1870X630X1850 |
RO-1000L | 1000 | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
RO-2000L | 2000 | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
RO-3000L | 3000 | 4 | ≥ 50% | 4040 | 2440X620X1850 |
RO-5000L | 5000 | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
RO-6000L | 6000 | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-8000L | 8000 | 13.5 | ≥ 60% | 8040 | 3000×900×1800 |
RO-9000L | 9000 | 14 | ≥ 60% | 8040 | 4000X900X1800 |
RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 3000X900X1800 |
RO-12T | 12T/H | 19.5 | ≥ 60% | 8040 | 4000X900X1800 |
RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
RO-30T | 30T/H | 55 | ≥ 60% | 8040 | 7000X900X1950 |
Flow Chart Of RO Water Treatment Machine
Raw water pump - Sand filter - Carbon filter -Cartridge filter - High pressure pump- RO membrane host-RO Cleaning system
1. Raw water supply pump: To use CNP2. High-pressure pump: To use CNP3. Reverse Osmosis Membrane: To use DOW, China4. Pre-treatment device: To use PVC tank with manual valve5. Conduit: To use PVC6. Electric standard configuration: PLC automatically control7. Electrical components: To use Zhengtai's and Schneider's products8. Frame: To use stainless steel.4 Reverse Osmosis Modules( RO)RO system is key part for the water treatment system, which is widely used to make the pure water and drinking water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The result is that the solute such as iron, Virus, bacteria and solids is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.5 Piping, Valves & FittingsThe pipe, valves and fittings (including tubing) ball valves, butterfly valves, piping used to the system is SS304. Reverse Osmosis Modules is equipped with sample valve for the convenience to check the product water.6 Control devicesThe whole automatic production line is achieved through the converter and PLC programmer and data collector such as the liquid lever sensor, flow sensor and etc. The whole production line is monitored by remote computer. When the water level of the product water tank is high, the system will stop automatically. When the water level of the product water tank is low, the system will run automatically.
Advantages of RO systems:
Running stablely, high desalination and recovery rate.
Easy to operate and small maintenance workload
Compact structure and saves installation place.
Highly efficient and low energy consumption
No secondary pollution and low operation cost
Applications for RO plants:
• Homes and villas
• Hotels/hospitals
• Commercial complexes
• Kindney dialysis Unit
• Poultry farms
• Food and beverages industry
• Bottled water plants
• Cooling tower /boiler feed water
Welcome to contact to us for quotation !
Related Products
-

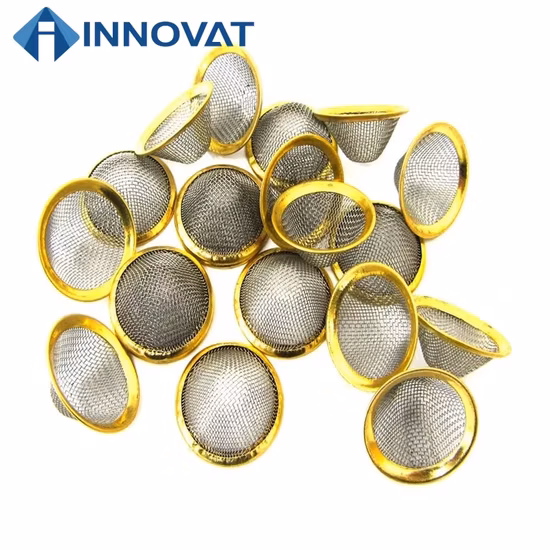

Stainless Steel 304 Wire Mesh Garden Hose Washer Sink Drain Strainer Tap Water Bottle Filter Cap
-
Home Kitchen Tap Water Filter in RO Water Filtration System
-
NSF 42 53 Water Filter Replacement Compatible with Jura Claris White 68739
-

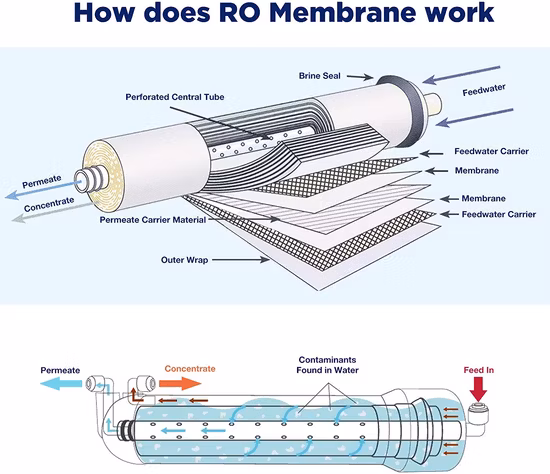

Home Domestic RO System Water Filters Reverse Osmosis Membrane Filter Cartridge RO Membrane 2012
